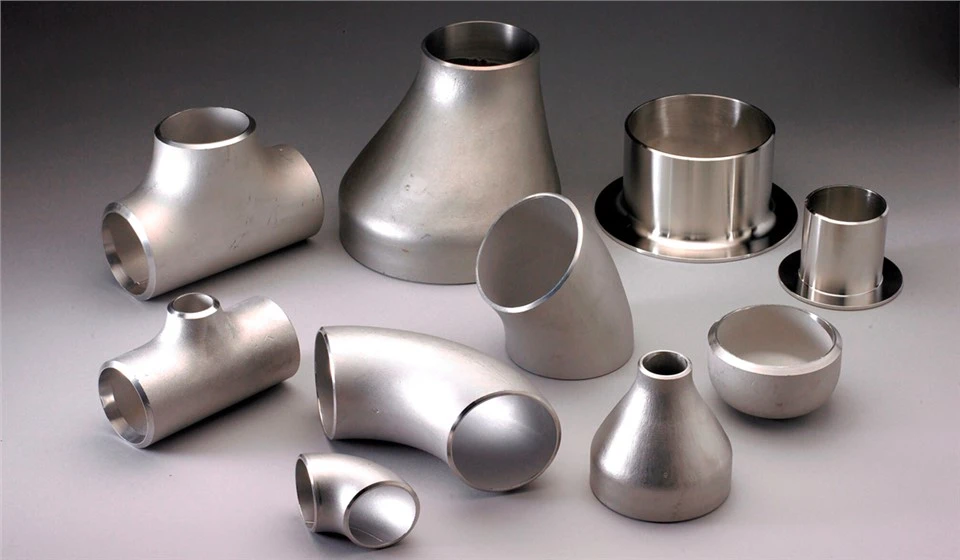

Stainless hlau pob tw weld fittings yog txhais raws li cov khoom siv hauv cov kav dej los hloov cov kev taw qhia, ceg, los yog hloov txoj kab uas hla ntawm cov yeeb nkab thiab yog mechanically txuas nrog lub system. Butt-weld fittings yog stainless hlau fittings nrog pob tw-weld sib txuas kom yooj yim installation thiab txij nkawm. Hom 304 stainless hlau yog cov khoom siv chromium-nickel uas tiv thaiv corrosion los ntawm dej, cua sov, brine, acids, minerals, thiab peaty av. Hom 316 stainless hlau muaj cov ntsiab lus nickel ntau dua li 304 stainless hlau, ntxiv rau molybdenum rau kev tiv thaiv corrosion ntau dua.

ASTM A403 yog tus qauv tshwj xeeb uas npog wrought stainless hlau fittings rau kev siv cov kav dej siab. Ntau qib ntawm austenitic. Ob peb qib ntawm austenitic stainless hlau alloys suav nrog hauv qhov kev qhia tshwj xeeb Cov Qib tau raug xaiv nrog ua ntej, WP lossis CR, raws li qhov siv tau ASME lossis MSS qhov ntev thiab cov qauv ntsuas, raws li.

Peb muab stainless hlau taub qab vuam fittings raws li ASME B16.9, EN10253-4/-3, nrog rau stainless hlau luj tshib, sib npaug / txo tees, conc / Ecc reducers, stainless hlau hau, stainless hlau luv xaus, thiab lwm yam Peb muab ntau yam ntawm SS pob tw weld fittings nyob rau hauv ntau yam stainless hlau qib 304, 304L, 316, 316L, 317, 317L, 321, 904L, thiab lwm yam.

Butt weld fittings yog txuas nrog cov kav dej rau kev thauj huab cua, dej, roj av, thiab roj rau kev siv cov kav dej, nrog rau kev ua zaub mov thiab khoom noj siv mis. Stainless hlau yeeb nkab fittings tiv thaiv corrosion los ntawm corrosive chemicals, corrosive kua, roj, thiab gases thiab muaj peev xwm tiv taus siab thiab kub. Hom 304 stainless hlau yog cov khoom siv chromium-nickel uas tiv thaiv corrosion los ntawm dej, cua sov, brine, acids, minerals, thiab peaty av. Hom 316 stainless hlau muaj cov ntsiab lus nickel ntau dua li 304 stainless hlau, ntxiv rau molybdenum rau kev tiv thaiv corrosion ntau dua.

Specifications ntawm ASTM A403 Stainless hlau Butt Weld haum

Kev qhia: ASTM A403 / ASME SA403

Txuj: ASTM, ASME

Qhov Loj: ANSI / ASME B16.9, B16.28, B16.25, thiab lwm yam.

Hom: Butt Weld

Fitting Hom: Hla, Luj Tshib, Tee, Cap, Rov qab Khoov, Reducer, thiab lwm yam.

Khoom siv: 304/304L, 310/310S, 316/316L, 321/321H, 410, 420, thiab lwm yam.

Loj: 1/2 "- 48"

Thickness: SCH 5S, SCH 10S, SCH 20S, SCH STD, SCH 40S, SCH 60, SCH 80S, SCH 100, SCH 120, SCH 140, SCH 160S, SCH XXS, thiab lwm yam.

Khoov Radius: R=1D, 2D, 3D, 5D, 8D, 10D, lossis raws li xav tau

Cov nqe lus them nqi: T / T, L / C

Lub sij hawm xa tuaj: Raws li qhov xav tau

Chemical Composition (%) ntawm ASTM A403 Stainless Steel Butt Weld Fitting

Qib	UNS	EN	C, max	Cr	Ni	Mo	Ti
304	S30400	1.4301	0.08	18.00-20.00	8.00-12.00	-	-
304L	S30403	1.4307	0.035	18.00-20.00	8.00-12.00	-	-
310S	S31008	1.4845	0.08	24.00-26.00	19.00-22.00	-	-
316	S31600	1.4401	0.08	16.00-18.00	10.00-14.00	2.00-3.00	-
316L	S31603	1.4404	0.035	16.00-18.00	10.00-14.00	2.00-3.00	-
321	S32100	1.4541	0.08	17.00-19.00	9.00-12.00	-	5X(C plus N)-0.70
347	S34700	1.4550	0.08	16.00-18.00	10.00-14.00	-	-
347H	S34709	1.4551	0.04-0.10	17.00-20.00	9.00-13.00	-	-

Mechanical Properties ntawm ASTM A403 Stainless Hlau Butt Weld Fitting

Tag nrho WP thiab CR Qib	Tensile zog, ksi [MPa], min	Yield zog, ksi [MPa], min
304/304LH, 304H, 309, 310, 316/316LN, 316H, 317/317L, 321/321H, 347/347H, 348/348H, S31725	75 [515]	30 [205]
304L, 316L	70 [485]	25 [170]
304N, 316N, S31726	80 [550]	35 [240]
XM -19	100 [690]	55 [380]
S31254	94 [650] rau 119 [820]	44 [300]
S33228	73 [500]	27 [185]
S34565	115 [795]	60 [415]

Qib sib npaug ntawm ASTM A403 Stainless Hlau Butt Weld Fitting

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SIB 304	1.4301	S30400	TIAB SA 304	304S31	08Х18Н10	Z7CN18-09	X5CrNi18-10
SWB 304L	1.4306/1.4307	S30403	SUS 304 L	304S11	03Х18Н11	Z3CN18-10	X2CrNi18-9/ X2CrNi19-11
SIB 304H	1.4301	S30409	-	-	-	-	-
