316 stainless hlau kaum feem ntau yog siv nyob rau hauv ntau yam architectural thiab engineering lug, xws li lub tsev beams, txuas hniav, hluav taws xob xa mus yees, nqa, thiab tsheb thauj mus los machinery, ships, industrial furnaces, tshuaj tiv thaiv yees, thawv racks, thiab warehouse txee.
316 stainless hlau, 18Cr12Ni2.5Mo Vim yog qhov sib ntxiv ntawm Mo, nws cov corrosion kuj, atmospheric corrosion kuj, thiab kub-kub lub zog yog tshwj xeeb yog zoo, yuav siv tau nyob rau hauv hnyav tej yam kev mob; zoo heev ua hauj lwm hardening (non-magnetic). Cov cuab yeej siv rau hauv dej hiav txwv, tshuaj lom neeg, xim, ntawv, oxalic acid, chiv, thiab lwm yam khoom siv ntau lawm; kev yees duab, khoom noj khoom haus kev lag luam, cov chaw hauv ntug dej hiav txwv, cov hlua, CD rods, bolts, thiab txiv ntseej.

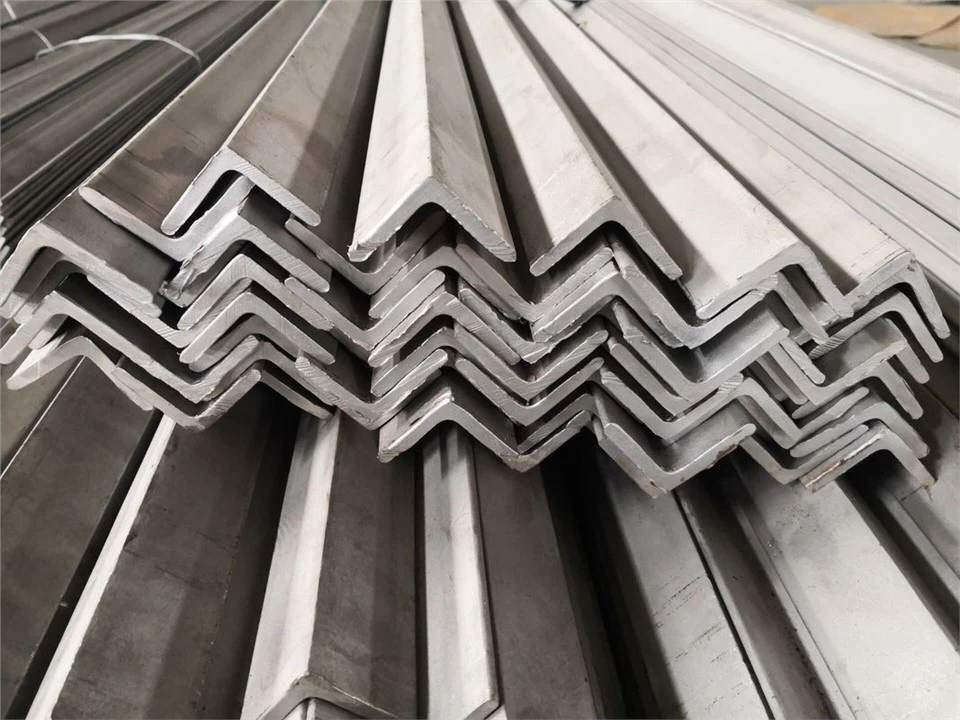

Thiab lub kaum sab xis stainless hlau yog ib txoj hlua ntev ntawm cov hlau nrog ob sab perpendicular rau ib leeg hauv lub kaum sab xis. Muaj cov kaum sab xis stainless hlau sib npaug thiab tsis sib xws stainless hlau cov ces kaum. Lub kaum sab xis stainless hlau muaj ob sab ntawm qhov dav sib npaug. Nws specifications qhia nyob rau hauv mm ntawm sab dav x sab dav x sab thickness.
Specifications ntawm 316 Stainless Hlau Lub kaum Bar
Kev qhia tshwj xeeb: ASTM A276 / ASME SA276
Txuj: ASTM, AISI, JIS, GB, DIN, EN
Khoom siv: SS316
Loj: 20mm-300mm
Thickness: 2 hli -30 hli
Ntev: 3m-12m, lossis xav tau
Nto tiav: 2B, BA, NO.1, NO.4, 4K, 8K, HL
Txheej Txheem: Kub Rolled, Cold Drawn, Cold Rolled, Forged
Cov nqe lus them nqi: T / T, L / C
Lub sij hawm xa tuaj: Raws li qhov ntau tau xaj
Pob: Mill packing, los yog yuav tsum tau
Chemical Composition (%) ntawm 316 Stainless Steel Angle Bar
|
C, max |
Mn, mas |
P, max |
S, max |
Si, max |
Cr |
Ni |
Mo |
|
0.08 |
2.00 |
0.045 |
0.030 |
0.75 |
16.00-18.00 |
10.00-14.00 |
2.00-3.00 |
Mechanical Properties of 316 Stainless Steel Angle Bar
|
Tensile zog (N / mm², MPa), min |
Yield zog (N / mm², MPa), min |
Elongation (%), min |
Hardness |
|
515 |
205 |
40 |
95 PAB |
Lub cev muaj zog ntawm 316 Stainless Steel Angle Bar
|
Qhov ntom |
Melting point |
Modulus ntawm elasticity |
Hluav taws xob resistivity |
Thermal diffusivity |
|
8.03 g / cm3 |
1370-1398 degree |
193 gp ua |
0.74 μΩ·m (20 degree) |
4.05mm² / s ({2}} degree) |
Qib sib npaug ntawm 316 Stainless Hlau Lub Taub Hau Bar
|
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
|
SIB 316 |
1.4401/1.4436 |
S31600 |
TIAB SA 316 |
316S31/316S33 |
- |
Z7CND17-11-02 |
X5CrNiMo17-12-2/X3CrNiMo17-13-3 |
Qhov ntau thiab tsawg daim ntawv ntawm 316 Stainless Steel Equal Angle Bar
|
Loj (mm) |
Theoretical Nyhav (kg / mm) |
Loj (mm) |
Theoretical Nyhav (kg / mm) |
Loj (mm) |
Theoretical Nyhav (kg / mm) |
|
25*3 |
1.124 |
70*6 |
6.406 |
100*16 |
23.257 |
|
25*4 |
1.459 |
70*7 |
7.398 |
110*8 |
13.532 |
|
30*3 |
1.373 |
70*8 |
8.373 |
110*10 |
16.69 |
|
30*4 |
1.786 |
75*5 |
5.818 |
110*12 |
19.782 |
|
40*3 |
1.852 |
75*6 |
6.905 |
110*14 |
22.809 |
|
40*4 |
2.422 |
75*7 |
7.976 |
125*8 |
15.504 |
|
40*5 |
2.967 |
75*8 |
9.03 |
125*10 |
19.133 |
|
50*3 |
2.332 |
75*10 |
11.089 |
125*12 |
22.696 |
|
50*4 |
3.059 |
80*6 |
7.736 |
125*14 |
26.193 |
|
50*5 |
3.77 |
80*8 |
9.568 |
140*10 |
21.488 |
|
50*6 |
4.465 |
80*10 |
11.874 |
140*12 |
25.522 |
|
60*5 |
4.57 |
90*8 |
10.946 |
140*14 |
29.49 |
|
60*6 |
5.42 |
90*10 |
13.476 |
160*12 |
29.391 |
|
63*4 |
3.907 |
90*12 |
15.94 |
160*14 |
33.987 |
|
63*5 |
4.822 |
100*8 |
12.276 |
160*16 |
38.518 |
|
63*6 |
5.721 |
100*10 |
15.12 |
160*18 |
48.63 |
|
63*8 |
7.7469 |
100*12 |
17.898 |
180*18 |
48.634 |
|
70*5 |
5.397 |
100*14 |
20.611 |
200*24 |
71.168 |
Qhov ntau thiab tsawg daim ntawv ntawm 316 Stainless hlau Tsis sib xws lub kaum sab xis Bar
|
Loj (mm) |
Theoretical Nyhav (kg / mm) |
Loj (mm) |
Theoretical Nyhav (kg / mm) |
Loj (mm) |
Theoretical Nyhav (kg / mm) |
|
25*16*3 |
0.912 |
75*50*5 |
5.339 |
110*70*10 |
13.476 |
|
32*20*3 |
1.717 |
75*50*6 |
4.808 |
125*80*8 |
12.551 |
|
40*25*3 |
1.484 |
75*50*7 |
5.699 |
125*80*10 |
15.474 |
|
40*25*4 |
1.936 |
75*50*8 |
7.431 |
125*80*12 |
18.33 |
|
40*28*3 |
1.687 |
80*50*6 |
5.935 |
140*90*8 |
14.16 |
|
40*28*4 |
2.203 |
90*56*6 |
6.717 |
140*90*10 |
17.475 |
|
45*30*4 |
2.251 |
90*56*7 |
7.756 |
140*90*12 |
20.724 |
|
50*32*3 |
1.908 |
90*56*8 |
8.779 |
160*100*10 |
19.872 |
|
50*32*4 |
2.494 |
100*63*6 |
7.55 |
160*100*12 |
23.592 |
|
56*36*3 |
2.153 |
100*63*7 |
8.722 |
160*100*14 |
27.247 |
|
56*36*4 |
2.818 |
100*63*8 |
9.878 |
180*110*10 |
22.273 |
|
56*36*5 |
3.466 |
100*63*10 |
12.142 |
180*110*12 |
26.464 |
|
63*40*4 |
3.185 |
100*80*7 |
9.656 |
180*110*14 |
30.589 |
|
63*40*5 |
3.92 |
100*80*8 |
10.946 |
200*125*12 |
29.761 |
|
63*40*6 |
4.638 |
100*80*10 |
13.476 |
200*125*14 |
34.436 |
|
63*40*7 |
5.339 |
110*70*8 |
10.946 |
|
|
