C71500 tooj liab-nickel, tseem hu ua 70/30 tooj liab-nickel, muaj corrosion kuj zoo, tshwj xeeb tshaj yog nyob rau hauv marine dej ntsev ib puag ncig. Cov thawj forged tooj liab-nickel alloys xaiv rau siv nyob rau hauv seawater kev pab cuam muaj 10% los yog 30% npib tsib xee. Lawv kuj tseem muaj qhov tseem ceeb ntxiv ntawm cov hlau thiab manganese, uas yog tsim nyog los tswj kom zoo corrosion kuj. Nws khaws nws lub zog zoo ntawm qhov kub nruab nrab, muaj qhov txias txias thiab kub ua haujlwm, thiab yooj yim rau vuam. Cov hlau no yog tam sim no siv rau hauv ntau hom kev siv, los ntawm cov kav dej rau cov dej hiav txwv thiab cladding rau offshore platforms rau underwater tawb rau ntses ua liaj ua teb. Qee cov ntawv thov rau tooj liab nickel muaj xws li li qub, twj tso kua mis sib dhos, fittings, flanges, thiab ntau lwm yam khoom siv marine.
Copper Nickel UNS C71500 fittings muaj qhov muaj kev nyab xeeb loj, ua rau lawv haum rau cov khoom siv hluav taws xob thiab cov condensers. Peb muab ntau yam cupronickel forged fittings xws li cupronickel tees, cupronickel 90-10 couplings, cupronickel 70/30 unions, cupronickel forged luj tshib, bushings, plugs, thiab lwm yam.
Copper-nickel forged fittings yog qhov tseem ceeb hauv kev tsim khoom hnyav vim yog cov yam ntxwv hauv qab no: kev tiv thaiv corrosion, hnav, kev ntxhov siab tawg thaum kub kub, pitting, thiab crevice cracking. Cov forged fittings no tuaj yeem tuav deformation thiab nthuav dav ntawm qhov kub thiab txias. Forged fittings yog qhov tsim nyog rau kev siv hauv cov khoom siv tshuaj cog qoob loo los xa cov tshuaj lom neeg.
Copper-nickel fittings yog siv dav hauv cov kav dej thiab kev lag luam rau kev hloov pauv cov dej ntws los yog txo qhov loj ntawm cov kav dej.

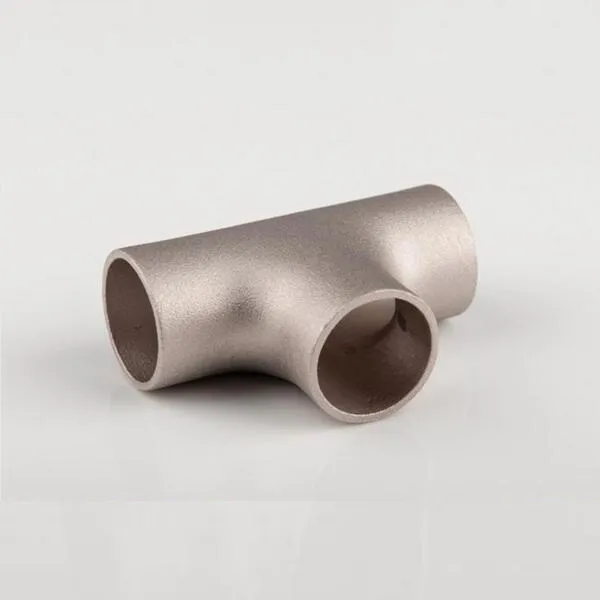

Specifications ntawm C71500 CuNi 70-30 Copper Nickel Tube Haum
ASTM A151 / ASME SA151, ASTM A171 / ASME SA171, ASTM A182 / ASME SA182, ASTM A466 / ASME SA466, ASTM A467 / ASME SA467
Cov Qauv: ASME / ANSI B16.9, ASME B16.28, ASME B16.11, thiab lwm yam.
Khoom siv: C71500 CuNi 70-30
Sab nraud txoj kab uas hla: 1/8 "NB rau 4" NB (DN{3}}DN100)
Phab ntsa Thickness: SCH 5S, SCH 10S, SCH 40S, SCH 80S, SCH 10, SCH 20, SCH 40, SCH STD, SCH 60, SCH 80, SCH XS, SCH 100, SCH 120, SCH 140, SCH 160
Chav Kawm: 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS, lossis raws li xav tau
Fitting Hom: 45 degree Luj tshib, 90 degree luj tshib, 180 degree luj tshib, Tee, Hla, Cap, Union, thiab lwm yam.
Hom: Seamless, Welded, Fabricated
Ntim: Ntoo Pallet, Ntoo thawv, thiab lwm yam.
Cov nqe lus them nqi: T / T, L / C
Lub sij hawm xa tuaj: Raws li qhov xav tau
Tshuaj muaj pes tsawg leeg (%) ntawm C71500 CuNi 70-30 Copper Nickel Tube Haum
|
Cu |
Mn, mas |
Pb, max |
Ni |
Fe |
Zn, max |
|
So |
1.00 |
0.05 |
29.00-33.00 |
0.40-1.00 |
1.00 |
Mechanical Properties of C71500 CuNi 70-30 Copper Nickel Tube Haum
|
Tensile zog |
Yield zog (0.2% Offset) |
Elongation (%) |
|
50000 psi |
20000 psi |
30 |
Lub cev muaj zog ntawm C71500 CuNi 70-30 Copper Nickel Tube Haum
|
Qhov ntom |
Melting Range |
Thermal conductivity |
Hluav taws xob conductivity |
Hluav taws xob Resistivity |
|
8.94g/cm³ ({2}}.323 lb/in³) |
2260-2140ºF (1170-1240ºC) |
17Btu/ft²/ft ºF ntawm 68ºF |
5% IACS ntawm 68ºF |
14.72 Ω |
Qib sib npaug ntawm C71500 CuNi 70-30 Copper Nickel Tube Haum
|
STANDARD |
WERKSTOFF NR. |
UNS |
|
CuNi 70-30 |
2.0882 |
C71500 |
