5086 aluminium alloy flange yog ib feem uas txuas cov yeeb nkab rau cov yeeb nkab. Nws yog siv rau kev sib txuas ntawm cov yeeb nkab kawg. Kuj tseem muaj qee qhov flanges uas yuav siv rau ntawm qhov nkag thiab qhov hluav taws xob ntawm cov khoom siv rau kev sib txuas ntawm ob daim ntawm cov khoom siv. 5086 aluminium alloy belongs rau tsev neeg aluminium-magnesium alloy vim nws cov alloy muaj peev xwm ua kom nws cov kev ua haujlwm corrosion, tseem hu ua anti-xeb txhuas. Lub ntsiab alloy ntawm no aluminium alloy yog magnesium. Txawm hais tias magnesium muaj cov khoom loj solubility, cov qauv ntawm cov khoom sib xyaw ua ke nrog txhuas tsis txawv ntau ntawm cov matrix, thiab cov nyhuv ntxiv dag zog tsis pom tseeb, yog li nws feem ntau tsis muaj zog los ntawm kev kho cua sov tab sis hardened los ntawm strain hardening lossis txias machining. cov khoom. Vim tias kev kho cua sov tsis cuam tshuam rau qhov hardness, 5086 aluminium khaws cov cuab yeej siv zog, yooj yim rau vuam, muaj kev ua haujlwm vuam zoo, thiab muaj dej hiav txwv corrosion.
ASME B16. ANSI B16.5 qhia cov ntsiab lus tshwj xeeb xws li qhov ntev, qhov ntsuas kub-kub, siab ntev, ntsuas, thiab lwm yam rau 5086 txhuas flanges. Tus qauv yog txwv rau cam khwb cia los yog forged 5086 txhuas yeeb nkab flanges thiab dig muag flanges cam khwb cia, forged, los yog fabricated los ntawm daim hlau.

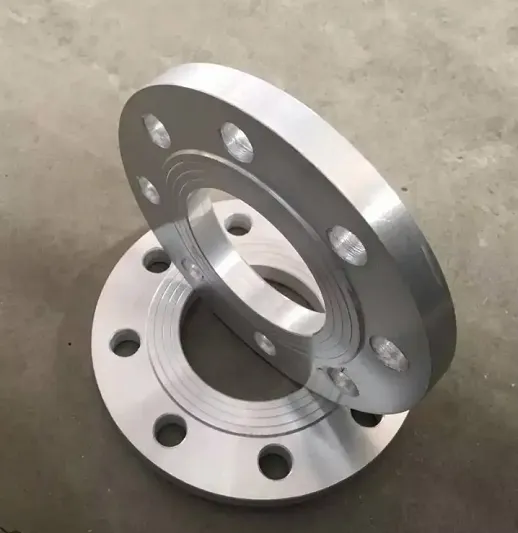

Specification ntawm ASME B16.5 Aluminium 5086 Yeeb Nkab Flange
|
Khoom npe |
ASME B16.5 Aluminium 5086 Yeeb Nkab Flange |
|
Txuj |
ANSI, ASME, DIN, JIS, BS, thiab lwm yam. |
|
Dimension |
ANSI/ASME B16.5 |
|
Khoom siv |
Aluminium 5086 |
|
Loj |
NPS 1/2 "-NPS 24" |
|
Chav kawm |
150, 300, 400, 600, 900, 1500, 2500 |
|
Cov txheej txheem |
Cast, Forged, Phaj |
|
Hom Flange |
WN (Weld Neck) Flange, SO (Slip-On) Flange, SW (Socket Weld) Flange, Dig Muag Flange, LJ (Lap Joint) Flange, Threaded Flange, thiab lwm yam. |
|
Hom ntsej muag |
FF (Lub ntsej muag tiaj tus), RF (Raised ntsej muag), RTJ (Nplhaib hom Joint), thiab lwm yam. |
|
Cov nqe lus them nqi |
T/T, L/C |
|
Lub sij hawm xa tuaj |
30-45 hnub, lossis raws li qhov xav tau |
TS yog tus xa khoom ntawm ANSI / ASME B16.5 aluminium alloy 5086 yeeb nkab flanges. Peb 5086 yeeb nkab flanges feem ntau muaj nyob rau hauv casting, forging, thiab phaj thiab muaj nyob rau hauv ntau qhov ntau thiab tsawg thiab ntau yam xws li NPS 1/2 mus rau NPS 24, los ntawm Chav Kawm 150 txog Chav Kawm 2500, kom txaus siab rau peb cov neeg siv khoom.
ANSI/ASME B16 5 5086 Aluminium Weld Neck Flange
ANSI/ASME B16. 5 5086 Aluminium Weld Neck tsa ntsej muag
ANSI/ASME B16
ANSI/ASME B16.
ANSI/ASME B16.
ANSI/ASME B16 5 5086 Aluminium Slip-On Flange
ANSI/ASME B16 5 5086 Aluminium Socket Weld Flange
ANSI/ASME B16.
ANSI/ASME B16 5 5086 Aluminium qhov muag tsis pom Flange
ANSI/ASME B16
ANSI/ASME B16 5 5086 Aluminium Lap Joint Flange
ANSI/ASME B16.5 5086 Aluminium Lap Joint tsa ntsej muag
ANSI/ASME B16 5 5086 Aluminium Threaded Flange
ANSI/ASME B16.5 5086 Aluminium Threaded Raised ntsej muag
Chemical Composition (%) ntawm ASME B16.5 Aluminium 5086 Yeeb Nkab Flange
|
Chemical Composition (%) |
||||||||
|
Mn |
Si, max |
Cr |
Cu, max |
Fe, max |
Al |
Zn, max |
Ti, max |
Mg |
|
0.20-0.70 |
0.40 |
0.050-0.25 |
0.10 |
0.50 |
93.00-96.30 |
0.25 |
0.15 |
3.50-4.50 |
Mechanical Properties ntawm ASME B16.5 Aluminium 5086 Yeeb Nkab Flange
|
MECHANICAL PROPERTIES |
|||
|
Tensile zog, MPa |
Yield zog, MPa |
Elongation (%) |
Hardness |
|
180 |
97 |
1.7 |
60 HB |
Muaj peb txoj kev tsim khoom rau ASME B16.5 5086 aluminium flanges: casting, forging, thiab phaj. Casting yog cov txheej txheem dav siv flange nrog kev ua haujlwm siab thiab cov nqi qis uas tuaj yeem tsim cov flanges nrog cov duab nyuaj. Lub flange casting yog yaj cov hlau mus rau hauv cov kua hlau ntawm qhov kub thiab txias, ncuav cov hlau molten rau hauv cov pwm hlau uas yog preheated thiab khaws cia ntawm qhov kub thiab txias, thiab tsim cov duab ntawm flange. Tom qab ib lub sij hawm, lub casting yog lawm txias thiab tsim nyob rau hauv lub pwm, ces sai txias los ntawm dej thiab pwm, thiab thaum kawg polished thiab xeb-pov thawj. Lub flange tsim los ntawm casting muaj qhov tseeb cov duab thiab qhov loj ntawm qhov khoob, thiab cov nqi ua haujlwm me me, tab sis yuav muaj qhov tsis xws luag xws li qhov pores, tawg, thiab lwm yam., thiab cov qauv sab hauv tsis zoo. Nws yog feem ntau haum rau nruab nrab thiab qis-siab ua haujlwm. Tsis tas li ntawd, qhov nto tiav ntawm cov cam khwb cia flange tsis siab, ntug chamfer tsis zoo, thiab muaj burrs uas tsis du. Nws qhov kev zam tsis zoo yog feem ntau nyob rau hauv thaj tsam ntawm 1-5 mm.
Lub forging ntawm lub flange kuj yog ib qho tseem ceeb heev txheej txheem ntau lawm. Cov txheej txheem yog txiav lub cylindrical billet raws li ib tug me me, kub nws mus rau ib tug tej yam kub kom nws thermoplastic, thiab muab tso rau hauv lub txias taub hau kom cia lub forging tshuab txuas ntxiv mus yeej nws. Qhov no yuav ua rau sab hauv ntawm steel billet ntau compact, thiab nws cov khoom siv kho tshuab zoo dua li qub steel billet. Thaum kawg, lub bolt qhov ntawm lub flange yog xuas nrig ntaus tawm ntawm lub billet los ntawm lub tshuab xuas nrig ntaus, thiab cov tsim dawb paug flange kuj raug txiav thiab polished los ua ib qho flange siv tau.
Cov ntsiab lus carbon ntawm forged flange feem ntau qis dua li ntawm cov cam khwb cia flange; lub streamlined zoo yog zoo; tus qauv yog compact thiab uniform; tsis muaj qhov tsis xws luag xws li pores; mechanical zog zoo dua; lub zog shear thiab tensile quab yuam yog siab dua; thiab tus nqi yog siab dua li ntawm cov cam khwb cia flanges. Flanges nrog lub zog siab, siab hnav tsis kam, thiab siab corrosion kuj uas haum rau nruab nrab thiab siab-siab ib puag ncig tuaj yeem tsim tau tom qab forging vim tias cov qauv ntawm cov khoom siv hlau tau raug txhim kho thaum lub sij hawm forging. Nyob rau tib lub sijhawm, nws tuaj yeem tshem tawm qhov tsis xws luag thiab porosity thiab nce qhov ntom thiab lub zog ntawm flange. Tsis tas li ntawd, cov txheej txheem flange forging tuaj yeem lav qhov tseeb qhov tseeb thiab qhov zoo ntawm lub flange vim tias qhov deformation tus nqi thiab deformation ceev ntawm cov khoom hlau tuaj yeem tswj tau meej thaum lub sij hawm forging.
Cov hlau phaj flange yog txiav ncaj qha los ntawm flange disc ntawm lub phaj phaj, tawm hauv lub puab thiab sab nraud diameters thiab thickness ntawm cov nqi ntawm nws, thiab ces cov ntsia liaj qhov rooj qhov thiab waterline yog tiav. Hom flange no tsuas yog tsim nyog rau qhov chaw ua haujlwm qis. Qhov dav ntawm nruab nrab phaj txwv qhov siab tshaj plaws ntawm Plate flanges.
ASME B16.5 Aluminium Alloy 5086 Cam khwb cia Flange
ASME B16.5 Aluminium Alloy 5086 Forged Flange
ASME B16.5 Aluminium Alloy 5086 Phaj Flange
Thickness kam rau ua ntawm ASME B16.5 Aluminium 5086 Yeeb Nkab Flange
|
Loj ntawm Flange |
Tolerance, mm [hauv.] |
|
|
NPS Tsawg dua lossis sib npaug rau 18 |
ntxiv rau 3.0mm [0.12 nyob rau hauv.] |
{{0}} 0mm [0.0 in.] |
|
NPS Ntau dua lossis sib npaug rau 20 |
ntxiv rau 5.0mm [0.19 nyob rau hauv.] |
{{0}} 0mm [0.0 in.] |
Tus qauv ASME B16.5 muaj qhov yuav tsum tau ua rau lub ntsej muag tuab ntawm 5086 txhuas tsa ntsej muag flanges. Flanges ntawm Chav Kawm 150 thiab 300 feem ntau muaj 2 hli [0.06 hauv.] tuab tsa ntsej muag, thaum lub ntsej muag tsa ntsej muag tuab ntawm flanges hauv Chav Kawm 400, 600, 900, 1500, thiab 2500 feem ntau yog 7 hli [0.25 nyob rau hauv. ]. Qhov thickness no tsis suav nrog qhov tsawg kawg nkaus thickness ntawm flange.
Nta ntawm ASME B16.5 Aluminium 5086 Yeeb Nkab Flange
Tsis muaj tshuaj lom
Zoo corrosion kuj
Tsawg-kub tsis kam
Zoo zog
Zoo nkauj, ci xim
Tsis muaj hlau nplaum
Lub teeb hauv huab hwm coj
Lub flange ua los ntawm aluminium alloy tuaj yeem ncav cuag qhov hardness ntawm stainless hlau flange, thiab nws cov conductivity yog siab dua li ntawm stainless hlau flange. Nws muaj qhov ntom ntom ntom ntom, yog lub teeb yuag, muaj lub zog zoo, tsis muaj tshuaj lom neeg xws li nitric acid thiab hydrogen peroxide, thiab muaj lwm yam zoo. Nyob rau hauv qhov kub thiab txias, lub zog ntawm aluminium flange yog txhim kho yam tsis muaj brittleness, yog li nws yog ib qho khoom siv zoo tshaj plaws rau cov khoom siv kub. Niaj hnub no, nyob rau hauv cov ntawv thov kev lag luam, 5086 aluminium flanges muaj cov txiaj ntsig zoo sib xws thiab kev cia siab rau daim ntawv thov.
